Hi, I’m running an EDU Go2 with the L1 LiDAR on ROS 2 Foxy and trying to do saved-map localization. Mapping works, localization does not, and I want a sanity check on whether the approach is even right for this sensor.

Phase 1: mapping

I preprocess /utlidar/cloud and /utlidar/imu (rotation into body frame, IMU bias, self-return removal) and feed Point-LIO (point_lio_unilidar). That gives me a global .pcd plus a 2D occupancy grid. Most of the time the map looks correct in RViz, but on some runs I get skewed walls like the attached screenshot. I save the intiatal pose as initial_pose.yaml (Point-LIO aft_mapped in camera_init) or 2D Pose Estimate" in rviz so I can seed localization later, mapping work, I get the .pcd map next, I just want to do localization against it so that I can run the robot for navigation and I do not need to build the map every time

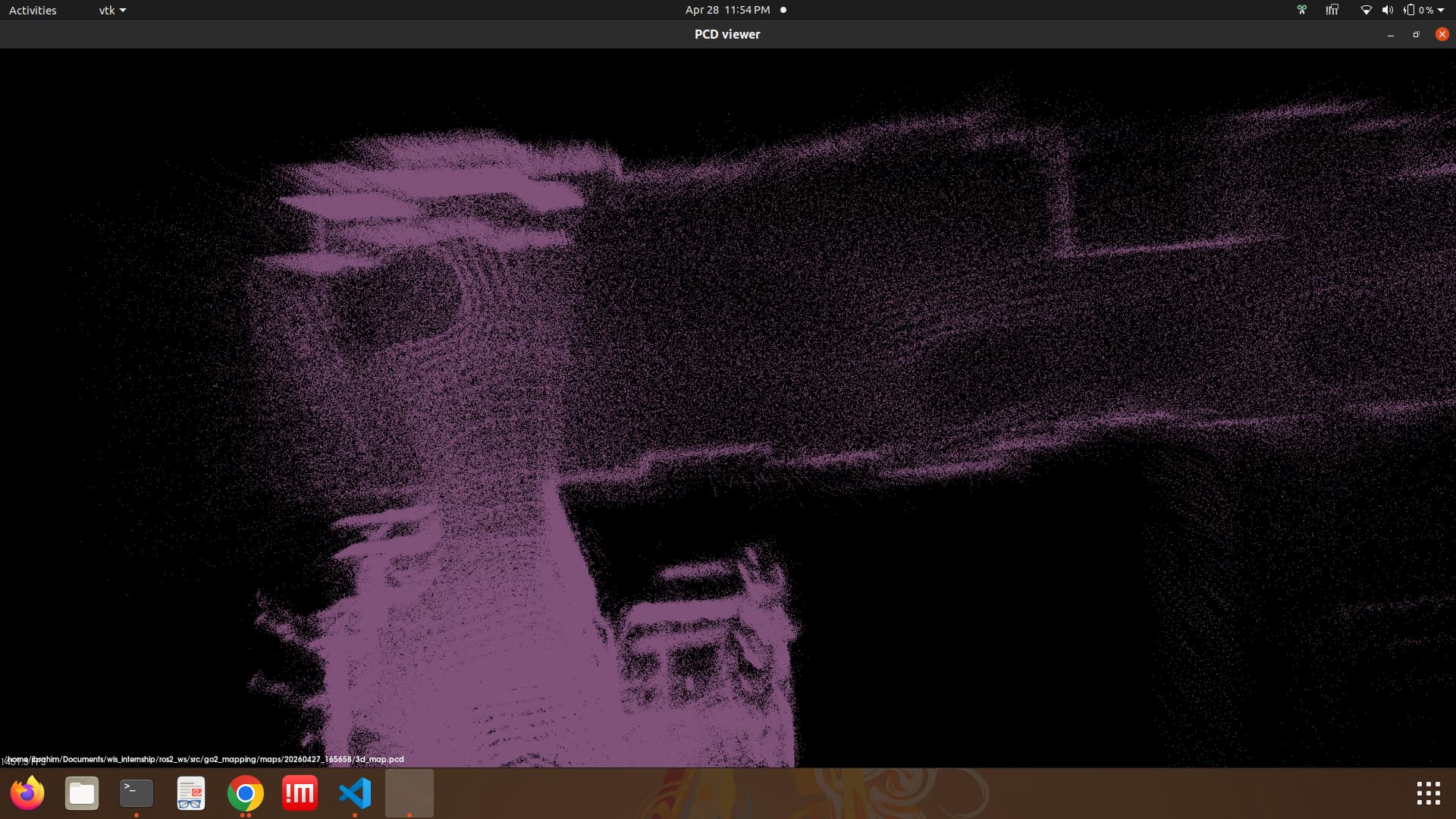

Look at the wall on the top left coner it looks like three walls
Look at the wall on the top left coner it looks like three walls1920×1080 268 KB

Phase 2: localization (this is where it falls apart)

I run a small package go2_localization doing PCL NDT scan-to-saved-PCD. Inputs:

  • cloud: /utlidar/transformed_cloud (frame body)
  • odom predictor: /utlidar/robot_odom (publisher reports _CREATED_BY_BARE_DDS_APP_, ~150 Hz, used only for twist integration between scans)
  • target: the saved .pcd
  • seed pose: from initial_pose.yaml or 2D Pose Estimate in rviz

It publishes /pcl_pose, /path, and map → body TF.

With the robot physically still and not moved since launch, I measured:

  • /utlidar/transformed_cloud: 15 Hz
  • /utlidar/robot_odom: under 1 mm xy drift in 12 s, max linear 0.029 m/s, max angular 0.044 rad/s. Odom is good.
  • /pcl_pose: drifts and jumps jitter and the robot does not know where it is, the drift can be in meters.

What I tried

  1. Load saved PCD from disk and downsample with map_voxel_leaf_size. From ~700,000 to ~33,000 points at 0.1 m leaf.
  2. Crop the downsampled map around the predicted pose so NDT only sees a 5 m local window (about 4–20 k points depending on leaf size).
  3. Filter the live scan with voxel_leaf_size = 0.1, range gate 1.0 – 8.0 m.
  4. Scan accumulation: buffer the last 5 scans (~333 ms), motion-compensate older scans into the latest body frame using the odom-integrated pose, merge, re-voxel, run NDT once at ~3 Hz. Fitness drops to about 0.002 (10x better), per-scan jitter halves, accepted-pose drift drops from ~6 cm in 30 s to ~2.5 cm in 30 s, and the robot localizes itself as you see in the screenshot but it still does not give a smooth path and sometimes it drifts a bit.

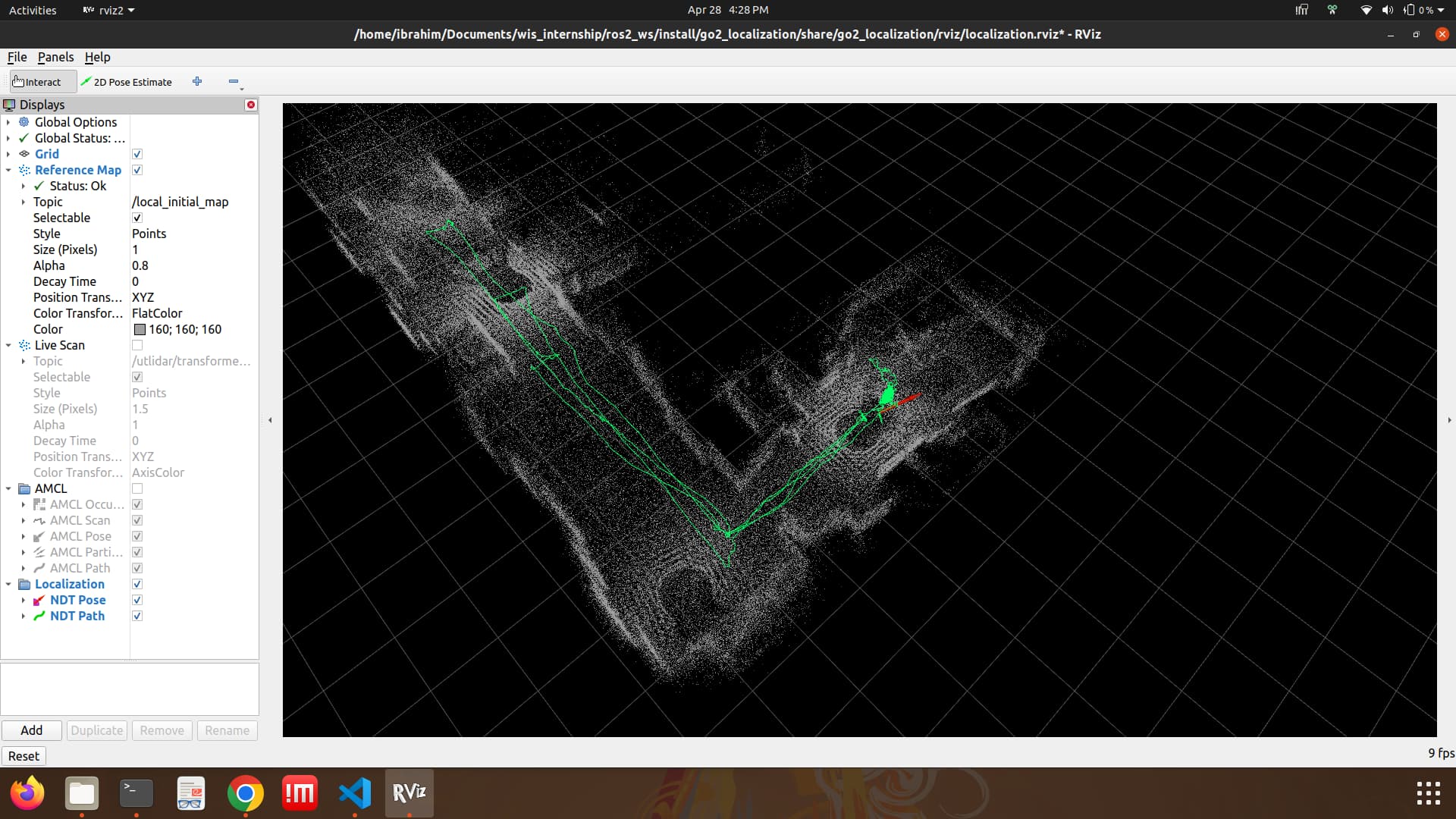

the gray is the saved map
the gray is the saved map1920×1080 250 KB

My current theory

I think the L1’s scan pattern is the root issue. It’s a non-repetitive “flower”/spirograph-style mirror pattern, ~21k points/s, so a single 100 ms frame is roughly 2,160 points. Frame A and Frame B (robot still) hit different parts of the same wall, so scan-to-map NDT sees a different point distribution every frame and drifts the optimum. This is the opposite of what NDT/ICP assume (consistent geometry from one scan to the next, like Velodyne VLP-16 at ~300k points/s).

That would explain why scan accumulation helped (more points per match averages out the spirograph aliasing) but didn’t fully fix it (the underlying scan-pattern variation is still there).

What I want to ask

  1. Is pure scan-to-saved-PCD localization actually can work and it si a solution on the Unitree L1, or is the supported workflow on Go2 always live LIO + a drift-correction layer (e.g. running Point-LIO during operation and adding something like small_gicp_relocalization or FAST-LIO localization mode to publish map → odom)?
  2. If pure scan-to-map on L1 is supposed to work, what registration method, NDT resolution, voxel sizes, and minimum scan accumulation window do you use? My current setup is ndt_resolution 0.75, voxel_leaf_size 0.1, map_voxel_leaf_size 0.1, accumulation = 5 scans.
  3. Is /utlidar/robot_odom the recommended source for predicting motion between scans for global localization, or is there a better internal source (e.g. /utlidar/cloud_deskewed, /uslam/localization/odom)? The Bare DDS publisher name made me unsure how official this topic is.
  4. The skewed-wall mapping result I sometimes get with Point-LIO. Is there a known cause on Go2 (IMU calibration, gait-induced vibration, motion type), and a recommended capture procedure?
